VirtConsole Docs

Security groups and IP sets

A security group is a named set of firewall rules you attach to instances, load balancers or managed databases. An IP set is a reusable named list of IP ranges (CIDRs) that rules can reference, handy for things like “office IPs” you reuse across many rules.

Before you begin

Section titled “Before you begin”
  • Nothing. The pages are available to every account. Attach groups to resources from the resource’s own page.

Where to find it

Section titled “Where to find it”

In the user panel go to Networking > Security groups and Networking > IP sets.

The security groups list.

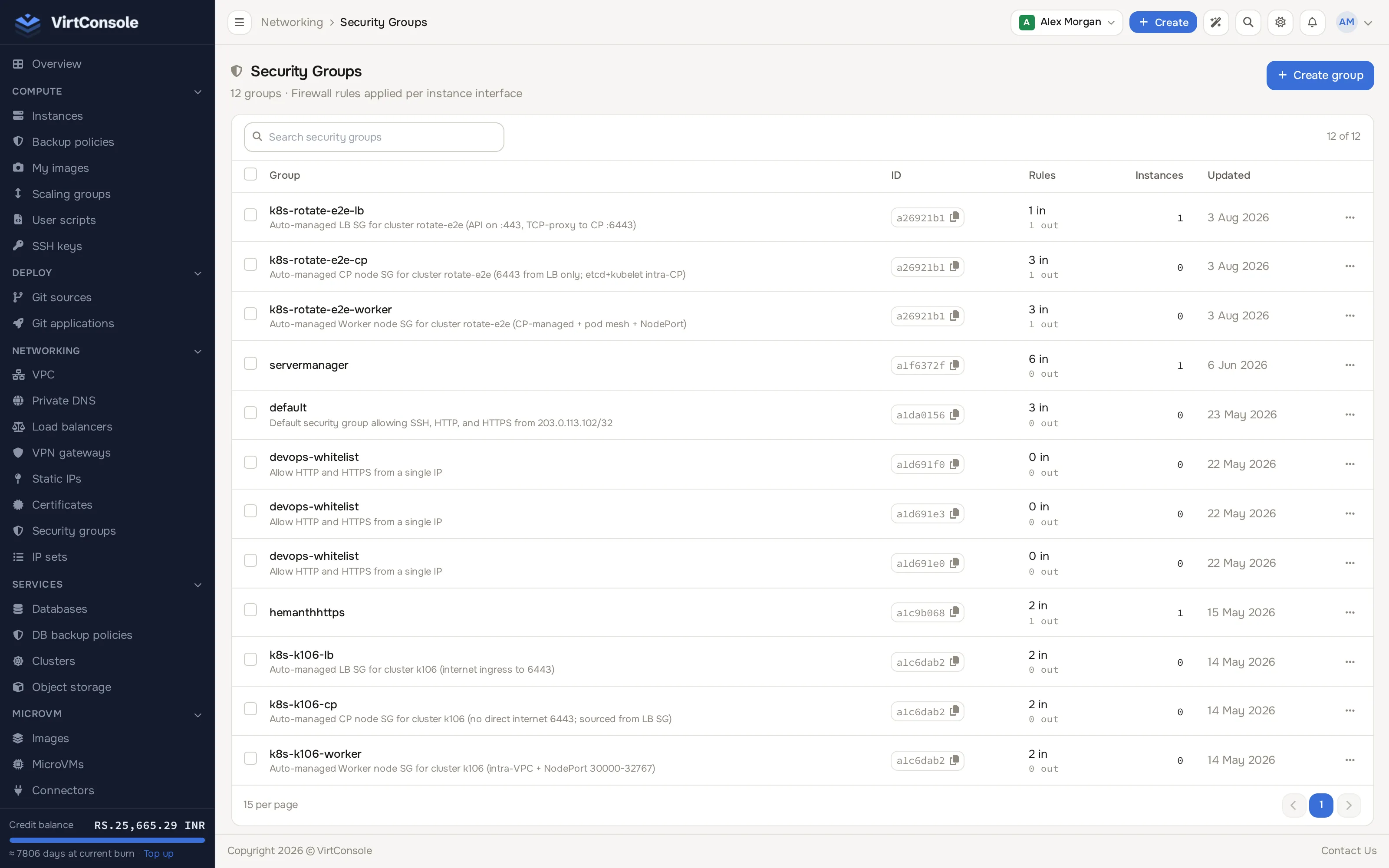

Security groups list

Create a security group

Section titled “Create a security group”

  1. Click Create group. The Create security group dialog opens.

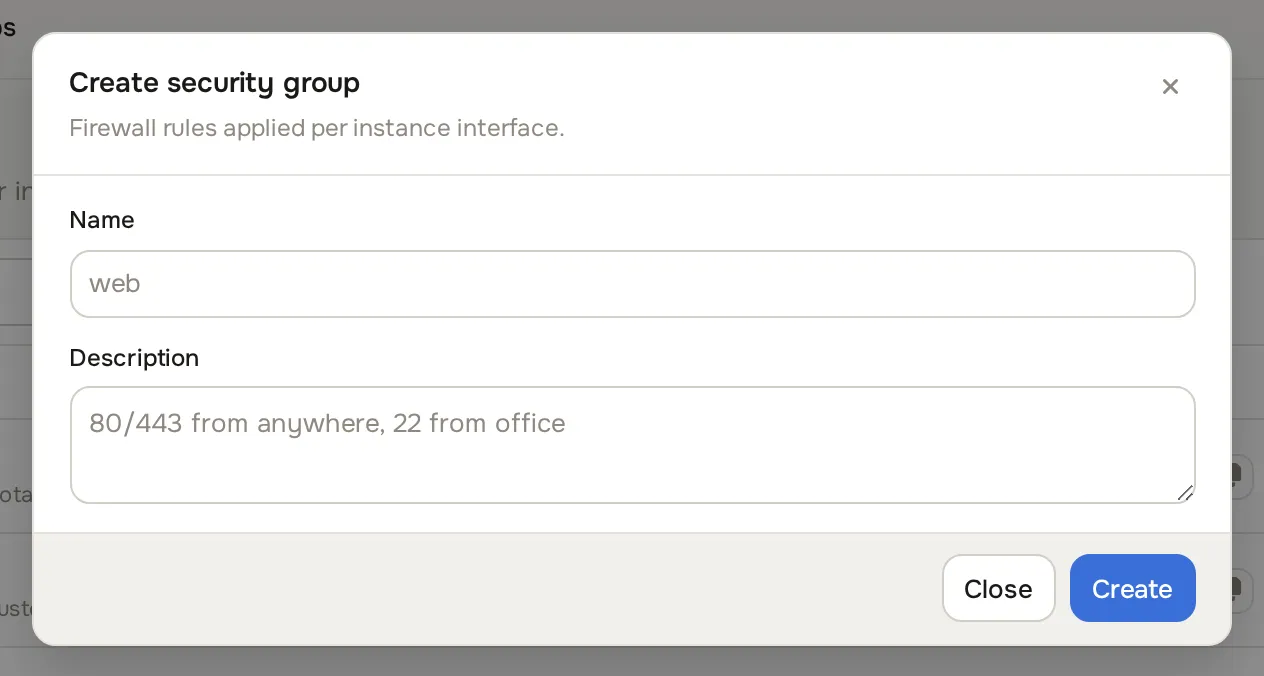

    Create security group dialog

  2. Enter a Name and optional Description.

  3. Click Create.

Groups you create are visible only to your account. Your provider may also publish global groups (for example “Allow Web Traffic”); you can attach those but not edit them.

Add a rule

Section titled “Add a rule”

Open the group from the list. Inbound (ingress) and outbound (egress) rules are listed separately; each has its own Add Rule button.

  1. Click Add Rule in the direction you want.
  2. Fill in:

Fields

Field Values What it means
Direction Ingress, Egress Inbound or outbound (fixed by which Add Rule you clicked).
Protocol TCP, UDP, ICMP, ICMPv6, All The network protocol to match. Port fields do not apply to ICMP or All.
Port Range 1-65535 Start and end port (TCP/UDP only). For one port, set both to the same number.
IP Version IPv4, IPv6 Which address family the rule matches.
Source Type CIDR, Remote Group, or IP Set How to match the other end (see below).
Description Free text Optional.
  1. Click Add Rule.

Duplicate rules (same direction, protocol, ports, IP version and source) are rejected. Delete a rule with the trash button next to it; changes reach your resources within about a minute.

Source types

Section titled “Source types”
  • CIDR: a specific address or range, for example 0.0.0.0/0 (all IPv4), 203.0.113.0/24, 192.0.2.10/32 (one IP) or ::/0 (all IPv6). The CIDR must match the rule’s IP version.
  • Remote Group: another security group. The rule matches the IPs of every resource that has that group attached, and follows along as they join or leave. Classic pattern: an ingress rule on a “Database Servers” group referencing a “Web Servers” group allows TCP 3306 from all your web servers without hardcoding IPs.
  • IP Set: one of your named CIDR lists. Only IP sets whose IP version matches the rule appear in the dropdown.

Common examples

Section titled “Common examples”

Allow SSH from anywhere (IPv4):

Direction Protocol Ports Source
Ingress TCP 22-22 0.0.0.0/0

Allow web traffic:

Direction Protocol Ports Source
Ingress TCP 80-80 0.0.0.0/0
Ingress TCP 443-443 0.0.0.0/0

Allow ping:

Direction Protocol Ports Source
Ingress ICMP - 0.0.0.0/0

How the rules behave

Section titled “How the rules behave”
  • A resource with no groups attached allows all traffic, except outbound SMTP (TCP 25), which stays blocked unless your provider enables SMTP for your account.
  • Once an attached group has at least one ingress rule, inbound traffic matching no rule is dropped. Same for egress, independently.
  • The firewall is stateful: replies to allowed outbound connections are let back in.
  • Multiple attached groups combine; anything allowed by any group is allowed.
  • Guest VNC console ports are never reachable directly from the internet; the console is only available through the panel.

Attach groups to resources

Section titled “Attach groups to resources”
  • Instances: from the instance manage page, Security Groups section. See Instance firewall.
  • Security group page: the group’s detail page has an Instances section with Attach Instance and per-row detach.
  • Load balancers and databases: from the resource’s own firewall or security section.

A resource can have up to 10 groups attached.

IP sets

Section titled “IP sets”

Go to Networking > IP sets to see every set you own.

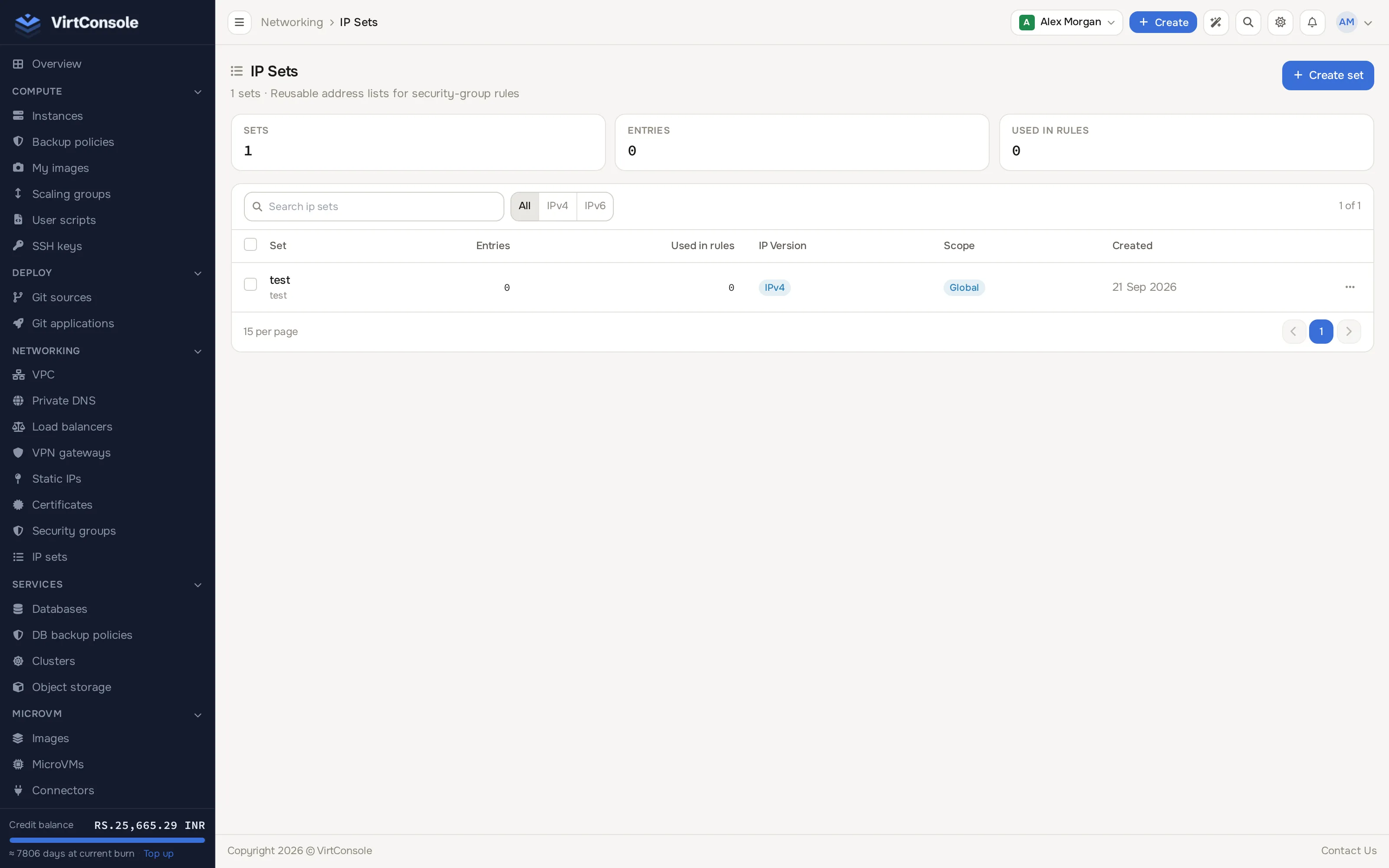

IP sets list

  1. Click Create set. The Create IP set dialog opens.

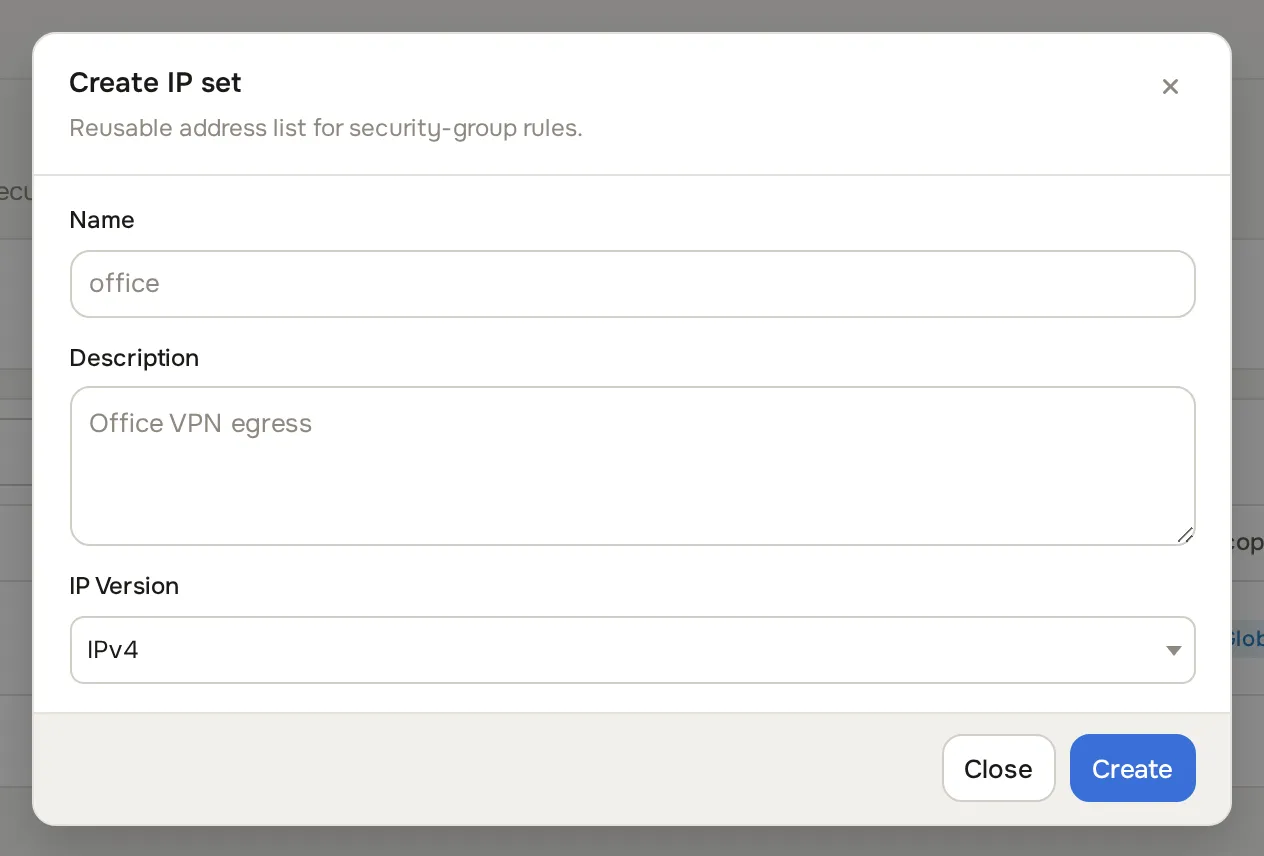

    Create IP set dialog

  2. Enter a Name, optional Description, and pick the IP Version.

  3. Click Create.

Add entries on the set’s detail page:

  • Add Entry: one IP or CIDR at a time, with an optional description. Bare IPs are normalised (/32 for IPv4, /128 for IPv6).
  • Bulk Add: paste many CIDRs, one per line. Duplicates are skipped; invalid lines are reported.

Rules of the road: the IP version is locked once entries exist, and a set cannot be deleted while a security group rule references it.

Common problems

Section titled “Common problems”
  • A rule is not taking effect. Wait about a minute, confirm the group is attached to the resource, and confirm the rule’s IP version matches the traffic you are testing.
  • Everything is still allowed. The attached groups have no rules in that direction. Zero rules in a direction means allow-all for that direction.
  • Cannot delete an IP set. A rule still references it. Remove or change the referencing rules first.
