High availability

High availability (HA) restarts a virtual machine on a different hypervisor when the hypervisor it was running on stops responding. The goal is to keep customer instances up even when a physical server fails.

HA only works when the instance’s disks live on storage that more than one hypervisor can read. If a disk lives only on the dead host’s local storage, no other host can restart that instance.

How it works

Every 30 seconds the management server checks each hypervisor in an HA-enabled group: a ping, then a call to the agent’s health endpoint.

1. Both checks fail: the hypervisor’s failure counter increments.
2. The counter reaches the group’s failure threshold (default 3, so about 90 seconds of failure): the hypervisor is marked down.
3. If fencing is enabled, the management server sends a power-off to the failed host over its BMC (baseboard management controller, the out-of-band management port on the motherboard). Fencing makes sure a host that looks dead is actually off, so two hosts never run the same instance against the same shared disk.
4. Each HA-covered instance on the failed host is restarted on another healthy hypervisor in the same group (evacuation).
5. Every step is written to the HA events log.

If the failed host recovers, it is marked back up. Evacuated instances stay where they were moved.

Caution

Without fencing, a host that is merely unreachable (not dead) can come back while its instances already run elsewhere. Two writers on one shared disk corrupts data. Enable fencing whenever the hardware supports it.

Before you begin

• Shared storage attached to every hypervisor in the group. Ceph (recommended) or NFS. See Ceph RBD storage.

• A hypervisor group with at least two hypervisors, all on the same shared storage and the same CPU architecture. An instance cannot restart on a different architecture.

• BMC access for every hypervisor: IPMI or Redfish enabled in the BIOS or UEFI, reachable over the network from the management server, with working credentials.

• For IPMI fencing, the ipmitool package on the management server:

  apt-get install ipmitool   # Debian / Ubuntu
  dnf install ipmitool       # RHEL family

Step 1: Configure fencing on every hypervisor

1. Go to Infrastructure > Hypervisors and open the hypervisor.
2. In the Fencing / BMC card, fill in:

Fields

Field	What to enter
Fencing Type	IPMI or Redfish.
BMC Host	IP or hostname of the BMC interface.
BMC Username	BMC login.
BMC Password	BMC password.

3. Save, then click Test BMC Connection. A successful test shows the chassis power state.

You can also test from the management server shell:

ipmitool -I lanplus -H 203.0.113.30 -U <username> -P <password> power status

Expected output: Chassis Power is on. Fix timeouts or authentication failures before continuing; HA fencing fails the same way at runtime.

Step 2: Enable HA on the hypervisor group

The HA options live on the group’s edit page. Create the group first if it does not exist yet.

1. Go to Infrastructure > Hypervisor groups and open the group.
2. Switch Enable High Availability on.
3. Switch Enable Fencing on.
4. Set the thresholds:

Fields

Field	What it does
Hypervisor Health Failure Threshold	Consecutive failed health checks before the host is declared down. Default 3 (90 seconds at the 30-second cadence). Lower reacts faster but trips on brief network blips; do not go below 3.
Max Instance Restart Attempts	How many times the panel retries restarting each instance elsewhere before giving up.

5. Save.

Note

On groups of agentless Proxmox VE nodes in cluster mode, HA is handled by the Proxmox cluster manager instead. The group edit page then shows extra fields: HA Max Restart (PVE CRM), HA Max Relocate (PVE CRM), No failback and Strict node placement.

Which instances are covered

An instance deployed onto a hypervisor in an HA-enabled group is flagged for HA automatically at creation time. Two conditions still apply at failover:

• The instance’s disks must be on shared storage. Local-disk instances are skipped.
• The rest of the group needs free capacity to absorb the evacuated instances.

Plan capacity so the group can lose one host (N+1) and still hold every instance: keep total RAM in use below the group’s total RAM minus the largest host’s RAM.

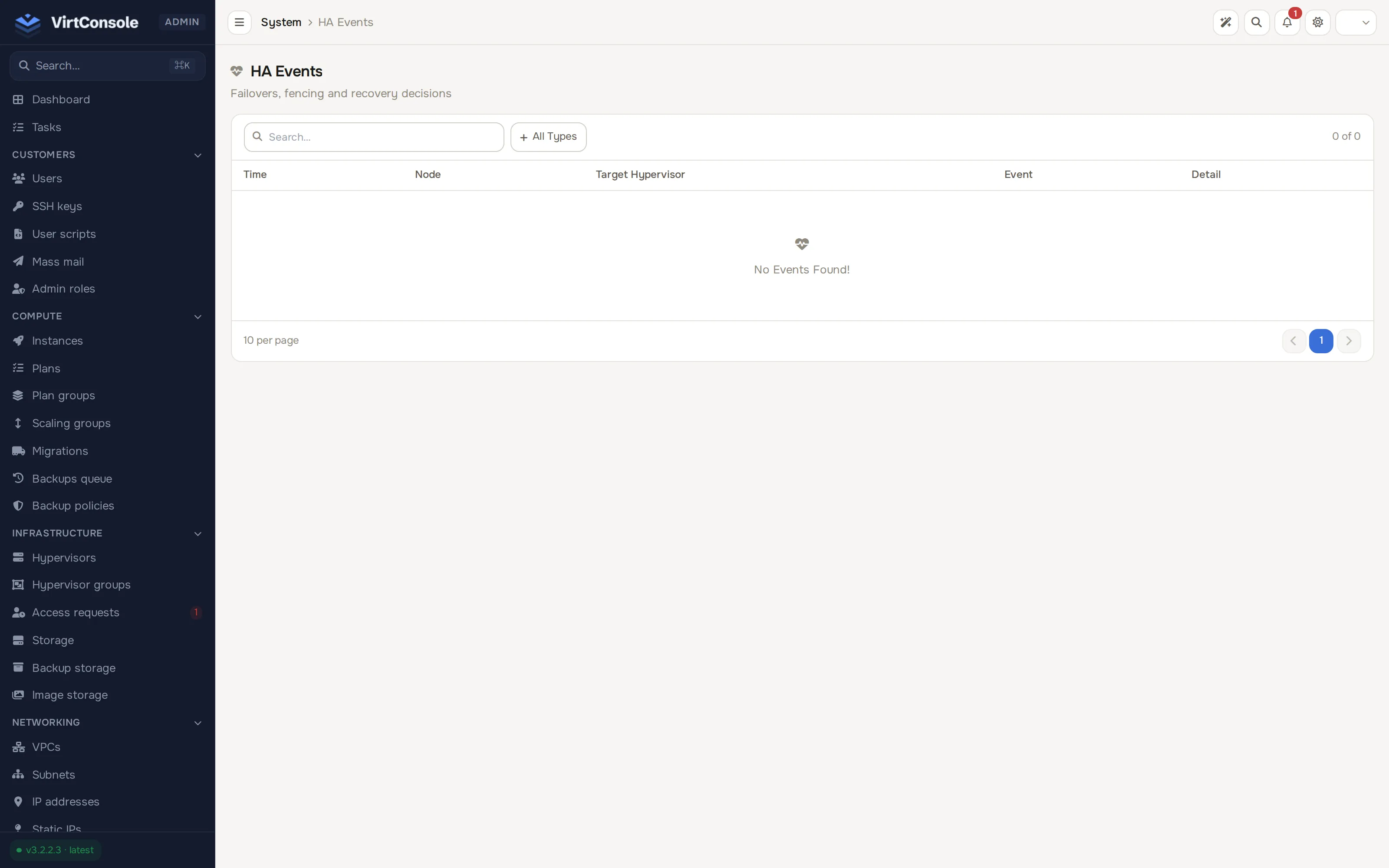

Watch the HA events log

The operational view is Logs > HA events. Each row shows the time, the node, the target hypervisor for evacuations, the event type and a detail message. Filter by event type or search.

Event	When it fires
Hypervisor Up	Health checks pass again after the host was marked down.
Hypervisor Down	Consecutive failures reached the threshold.
Hypervisor Fenced	The BMC power-off was sent; evacuation begins next.
Fence Failed	The power-off failed. Evacuation is unsafe until this is resolved.
Instance Evacuated	One instance was restarted on a different hypervisor.
VPC NAT Assigned / VPC NAT Failover	The VPC NAT gateway role moved hosts as part of the failover.

When a host dies and HA evacuates an instance, the customer sees the instance reboot and its hypervisor field change. No customer notification is sent by default.

Common problems

• A host was marked down but never fenced. BMC is misconfigured or unreachable. Check the credentials on the hypervisor’s Fencing / BMC card, use Test BMC Connection, and confirm the management server can reach the BMC over the network. Watch for Fence Failed events.
• Instances were not evacuated after a fence. Check each instance: its disks must be on shared storage, and the group needs free capacity. The events log carries per-instance evacuation errors.
• False failovers during network blips. The default threshold tolerates about 90 seconds of outage. Raise Hypervisor Health Failure Threshold on the group; do not lower it below 3.
